  Data Acquisition Device (HarmonizedCode:84733080, ECCN:N, LKZ:DE, AG:N)
  Manufacturer: iba-ag
  SKU: 10.170001

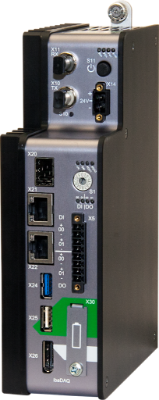

  Data Acquisition Unit with Windows 10 IoT Enterprise LTS - Installed as an ibaPDA-Server

  Technical Data:

  Manufacturer: iba AG
  Module for Data Acquisition
  CPU module with Intel Atom E3845, 1.91 GHz
  Operating System Windows 10 IoT Enterprise Long Term Servicing-Version
  512 GB SSD
  4GB RAM
  2 digital inputs ± 24 V onboard
  2 digital outputs ± 24 V onboard
  Standard interfaces onboard 2x Ethernet (TCP/IP), 2x USB, Display port
  Fiber optic interface for ibaNet onboard; supports 32Mbit Flex, 32Mbit, 5Mbit, 3Mbit, 2Mbit; 2 ST-FO connectors (50/125 µm and 62.5/125 µm) for RX/TX
  Installed with ibaPDA software for 64 signals
  Extendable up to 1024 signals with additional licenses
  Client-server-architecture
  2 Data Stores
  Extendable with modules of the PADU-S modular system on the backplane
  Extendable with ethernet based interfaces
  Fanless, no rotating parts
  Rugged metal case
  Remarks:

  This is a class A product. In a domestic environment this product may cause radio interferences in which case the user may be required to take adequate measures.
  Protected by dongle
  Remote access via ibaPDA-Client through ethernet interface
  To use a compact UPS in operation with ibaDAQ is highly recommended.
  Contains software maintenance and support after the purchase for 2 years. Afterwards a software maintenance and support contract is required.
